Beacon M1
Gamut Lighting Beacon M1 is a surface mounted wall luminaire developed to brighten the night and outdoor building facade. The cylinder shape of the luminaire is slim and compact down lighting.
Technical data
Print technical data
- IP65
| INSTALLATION | Wall Surface mounted |
|---|---|
| LIGHT SOURCE | LED |
| MOUNTING | Surface Mounted (Wall) |
| LED COLOR | 2700/3000/4000/5000/6500K |
| IP RATING | IP65 |
| RATED POWER | 6W / 9W / 12W |
| BEAM ANGLE | 12°, 24°, 36°, 45°, 60° |
|---|---|
| BODY MATERIAL | Die-cast aluminium |
| BODY FINISH | Black, Grey |
| LAMP LIFE | 50,000 Hrs |
| CONNECTION | Parallel Connection |

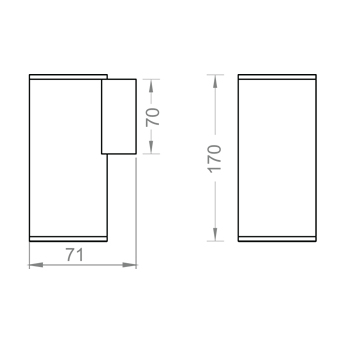

| DIMENSIONS | 71 x 170mm |
| SUPPLY VOLTAGE | 110-240V AC |
| NOTES |
LED Module : High-power LEDs on metal-core PCB; Collimating lens
made of optical polymer/pmma |
| OPTIONS |
Electric Protection : EMC; inrush current Electrical Class : 1 |
