Beacon M2
Gamut Lighting Beacon M2 is a surface mounted wall luminaire developed to brighten the night and outdoor building facade. The cylinder shape of the luminaire is slim and compact down lighting.
Technical data
Print technical data
- IP65
| INSTALLATION | Wall Surface mounted |
|---|---|
| LIGHT SOURCE | LED |
| MOUNTING | Wall surface mount |
| LED COLOR | 2700/30000/40000/5000/6500K |
| IP RATING | IP65 |
| RATED POWER | 12W / 18W / 24W |
| BEAM ANGLE | 15°, 24°, 36°, 45°, 60° |
|---|---|
| BODY MATERIAL | Die-cast aluminium |
| BODY FINISH | Black, Grey |
| LAMP LIFE | 50,000 Hrs |
| CONNECTION | Parallel Connection |

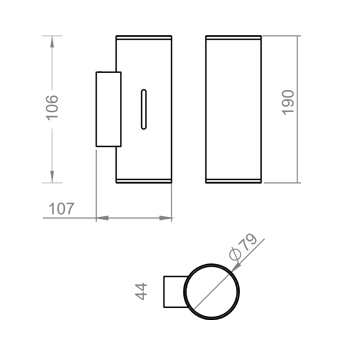

| DIMENSIONS | 107 x 106mm |
| SUPPLY VOLTAGE | 110-240V AC |
| DRIVER / POWER SUPPLY DETAILS |
DALI |
| LENS OPTIONS |
Tempered glass |
| OPTIONS |
LED Module : High-power LEDs on metal-core PCB; Collimating lens
made of optical polymer/pmma Electric Protection : EMC; inrush current Electric Class : 1 |
