ECLIPSE R2

Gamut lighting Eclipse R2 is an inground recessed uplight ideal for garden walls, decks, pillar/column lighting, tree lights, stair safety/accent lighting, pathways, public parks and marine environment. This IP68 rated fixture made in stainless steel features symmetrical light distribution and hence will create a beautiful ambiance & enhance the environment.

Technical data

Print technical data
  • complies with the European standard
  • IP68
INSTALLATION Recessed (Ceiling, Wall, Floor) Brick work installation with housing box (not included)
LIGHT SOURCE LED
LED QUANTITY 1 No
MOUNTING Floor recessed
LED COLOR 2700/3000/4000/5000/RED/GREEN/BLUE/2200K
IP RATING IP68
RATED CURRENT 350mA / 500mA
RATED POWER 4W / 6W
BEAM ANGLE 8°, 23°, 43°, 10°x41°
BODY MATERIAL Anodized aluminium body, anodized aluminum or AISI 316L Stainless steel trim, tempered glass diffuser
BODY FINISH Anodized Aluminum (A), Worked Steel (I), Satinized Steel(S)
LAMP LIFE 50,000 Hrs
CONNECTION Series (supply “S”) Parallel (supply “P”)

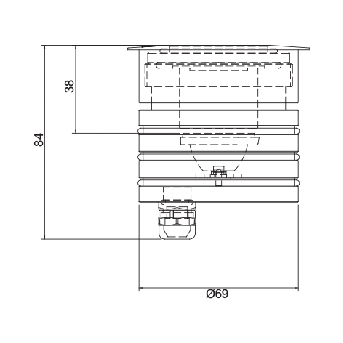

DIMENSIONS 79x84 mm
WIRING Provided with 150cm neoprene cable
SUPPLY VOLTAGE 24V DC
LENS OPTIONS Tempered glass
OPTIONS HML-Half moon lens
