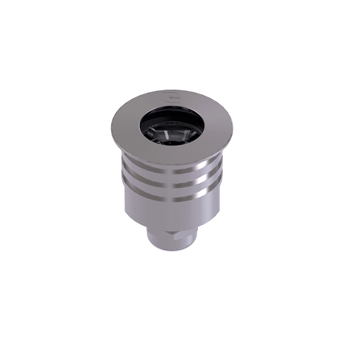

AQUA R1

Gamut lighting Aqua R1 is an inground recessed uplight ideal in exterior lobby entrances as highlight or to be used as uplight for walls and columns. These buried LED lighting fixture made in stainless steel features symmetrical light distribution and hence will create a beautiful ambiance & enhance the environment.

Technical data

Print technical data
  • complies with the European standard
  • IP68
INSTALLATION Recessed (Ceiling, Wall, Floor) Brick work installation with housing box (not included) Panel installation with torsion spring (not included)
LIGHT SOURCE LED
LED QUANTITY 1 No
MOUNTING FLOOR RECESSED
LED COLOR 2200/2700/3000/4000/5000K, (UNIQUE COLORS: RED, GREEN, BLUE)
IP RATING IP68
RATED POWER 1W / 2 W
BEAM ANGLE 8°, 23°, 43°, WW - 10°x41°
BODY MATERIAL AISI 316L Stainless Steel Trim, Tempered Glass Diffuser
BODY FINISH Worked Steel (I)
LAMP LIFE 50000 hours
CONNECTION Series connection
DIMENSIONS ø38 X 45mm
WIRING Provided with 500cm neoprene cable
SUPPLY CURRENT 350mA / 500mA
DRIVER / POWER SUPPLY DETAILS ON/OFF
DIMMING N - None
