CRUX

Gamut Lighting Crux series is a wall mounted flood light in LED version providing precision optical system which gives very low glare rating, while reducing light pollution and specially designed for landscape and in unique structure design shape. This exterior flood luminaries can be specified as heavy duty die-cast aluminum body and housing covered by anti-corrosion resistant with 304 or 316 marine grade stainless steel.

Technical data

Print technical data
  • complies with the European standard
  • IP65
INSTALLATION Ground, Wall, Pole Mounted
LIGHT SOURCE LED
MOUNTING Wall mounted flood light
LED COLOR 2700/3000/4000/5000K
IP RATING IP65
DELIVERED LUMEN 120 lm/W @ 4000K
RATED POWER 30/40 W
BEAM ANGLE 10°/25°/40°/60°,Asymmetric
BODY MATERIAL Heavy duty die-cast aluminum
BODY FINISH Black, White, Grey
LAMP LIFE 50,000 Hrs
CONNECTION Parallel Connection

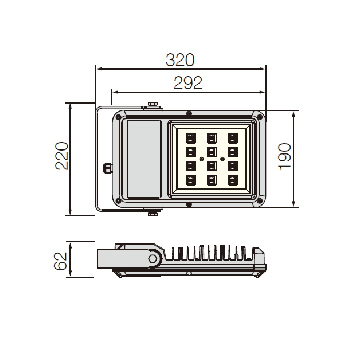

DIMENSIONS 320x220 mm
WIRING Provided with 30cm PVC cable
SUPPLY VOLTAGE 100-305V AC

Read more

Close

Versions

    No other versions available
