AXIS Q8

Gamut lighting Axis Q8 in-ground high power LEDs are bright, energy efficient, and attractively styled, making them perfect for virtually any application. Perfect for garden walls, decks, pillar/column lighting, commercial building up lighting, tree lights, stair safety/accent lighting, garden walls, building entrances, pathways, public parks and marine environments.

Technical data

Print technical data
  • complies with the European standard
  • IP67
INSTALLATION Recessed (Ceiling, Wall, Floor) Brick work installation with housing box (not included) Panel installation with torsion spring (not included)
LIGHT SOURCE LED
LED QUANTITY 1 No
MOUNTING FLOOR RECESSED
LED COLOR 2700/3000/4000/5000K
IP RATING IP67
RATED POWER 18W
BEAM ANGLE 40°
BODY MATERIAL Anodized aluminium body, anodized aluminum or AISI
BODY FINISH Anodized Aluminum (A), Worked Steel (I), Satinized Steel(S), Anodized Black (J)
LAMP LIFE 50,000 Hrs
CONNECTION Parallel Connection

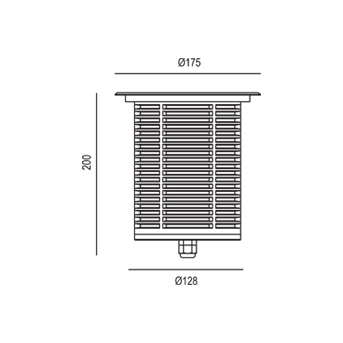

DIMENSIONS 175 x 200mm
WIRING Provided with 150cm neoprene cable
SUPPLY VOLTAGE 220-240 V AC
