AR-L
Gamut Lighting Arena-L is a type of surface mounted luminaire ideal for the lighting of steps, sidewalks, facades, paths and gardens. It has been designed specifically to produce low glare illumination to walls and columns.
Technical data
Print technical data
- IP66
| LIGHT SOURCE | LED |
|---|---|
| MOUNTING | Surface Mounted (Wall, Floor) |
| LED COLOR | 2200/2700/3000/4000/5000/6000K/RGB/RGBW |
| IP RATING | IP66 |
| RATED POWER | 48 W/m / 60 W/m / 100 W/m |
| BEAM ANGLE | 5°, 10°, 15°, 24°, 36°, 60°, 90°, 10° x 40°, 10° x 90° |
|---|---|
| BODY MATERIAL | Die-cast aluminum |
| BODY FINISH | Anodized Grey, White, Black |
| LAMP LIFE | 50,000 Hrs |
| CONNECTION | Parallel Connection |

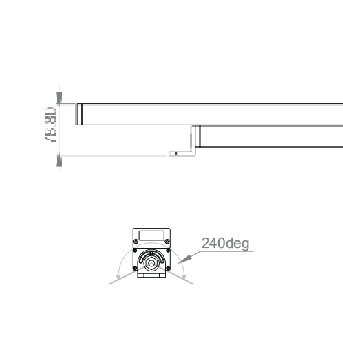

| DIMENSIONS | L1000 x W 60 x H 79mm |
| SUPPLY VOLTAGE | 100-240V AC / 24,48V DC |
| DRIVER / POWER SUPPLY DETAILS |
ON/OFF 1-10V DALI DMX512 |
| DIMMING | Non-dimmable, 1-10V, Dali, DMX |
| OPTIONS |
LED MODULE : High-power LEDs on metal-core PCB ; Collimating lens made of optical polymer/pmma ANTI-GLARE : Option ELECTRIC PROTECTION : EMC ; Inrush current ELECTRIC CLASS : 3 |
