CM-T

Gamut Lighting Custom marker floor tiles emit a subtle soft glow with a choice to change colors automatically through a controller compatible with DMX512 protocol. Combination of visual effects such as breathing, jumping makes the landscape design a feast for the eyes. Frequent applications include public areas landscape lighting, shopping malls, squares, plazas, driveways, walkways, patios, resorts, etc. Suitable for walkover / pneumatic tyre load of max. 500Kg.

Technical data

Print technical data
  • complies with the European standard
  • IP67
INSTALLATION Floor recessed
LIGHT SOURCE LED
MOUNTING FLOOR RECESSED
LED COLOR 3000K
IP RATING IP67
DELIVERED LUMEN 825 lm
RATED POWER 15W
BEAM ANGLE Diffused
BODY MATERIAL Stainless steel & aluminum
BODY FINISH Stainless steel
LAMP LIFE 50,000 Hrs
CONNECTION Outdoor rated connections

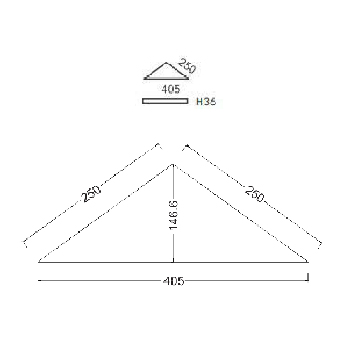

DIMENSIONS 405(405) x 250(W) x 36(H)mm / as per site
SUPPLY VOLTAGE 24V DC
DRIVER / POWER SUPPLY DETAILS DALI
DIMMING DALI
CRI 85
LENS OPTIONS Sandblasted Glass Diffuser
