EC
Gamut Lighting Eclipse Linear is wall washer series linear light of new solution for large scale with high brightness architectural illumination. It suitable for exterior architectural, retail and hospitality applications.
Technical data
Print technical data
- IP66
| INSTALLATION | Surface mounted (Ceiling, Wall, Floor) |
|---|---|
| LIGHT SOURCE | LED |
| MOUNTING | Surface mounted ( Ceiling, Wall, Floor) |
| LED COLOR | 2200/2700/3000/4000/5000/6000K/RGB/RGBW |
| IP RATING | IP66 |
| RATED POWER | 18/24/36/40 W |
| BEAM ANGLE | 5°, 10°, 15°, 24°, 36°, 60°, 90°, 10° x 90°, 20° x 40° |
|---|---|
| BODY MATERIAL | DIE-CAST ALUMINUM |
| BODY FINISH | White, Grey |
| LAMP LIFE | 50,000 Hrs |
| CONNECTION | Parallel Connection |

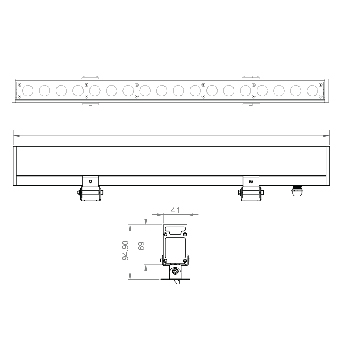

| DIMENSIONS | L1000 x W 41 x H 69mm |
| SUPPLY VOLTAGE | 100-240V AC / 24V DC / 48V DC |
| DRIVER / POWER SUPPLY DETAILS |
ON/OFF DMX |
| DIMMING | Non-dimmable, DMX |
| NOTES |
LENGTH : 1000 mm |
| LENS OPTIONS |
Tempered glass |
| OPTIONS |
LED MODULE : High-power LEDs on metal-core PCB. Collimating lens
made of optical polymer/pmma ELECTRIC PROTECTION : EMC ; inrush current |
