ORBIT
Gamut Lighting Orbit is a surface mounted wall luminaire developed to brighten the night using the high performance of the LED light source. The outdoor lighting fixture is designed with aluminum body and more modern look.
Technical data
Print technical data
- IP65
| INSTALLATION | Wall Surface mounted |
|---|---|
| LIGHT SOURCE | LED |
| MOUNTING | Wall surface mounted |
| LED COLOR | 2700/3000/4000/5000/6500K |
| IP RATING | IP65 |
| DELIVERED LUMEN |
85-90 lm/W |
| RATED POWER | 5,9,2x9 W |
| BEAM ANGLE | Narrow, Medium, Wide |
|---|---|
| BODY MATERIAL | Heavy duty die-cast aluminum |
| BODY FINISH | Black, Grey |
| LAMP LIFE | 50,000 Hrs |
| CONNECTION | Parallel Connection |

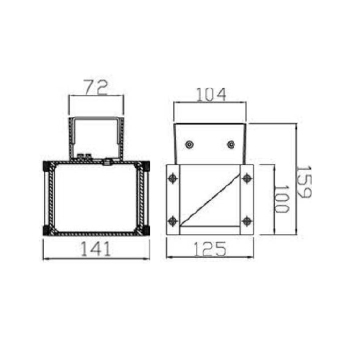

| DIMENSIONS | 159x125 mm |
| WIRING | Provided with 30cm PVC cable |
| SUPPLY VOLTAGE | 100-240V AC |
| DIMMING | Dimmable |
| CRI | 80+,90+ |
